Description:Of the multitude of different Quad-Ring dimension standards in existence,the most popular is AS568 Standard Size Quad-Rings and lists a series sizes of Quad-Rings with corresponding dimensions and tolerances.

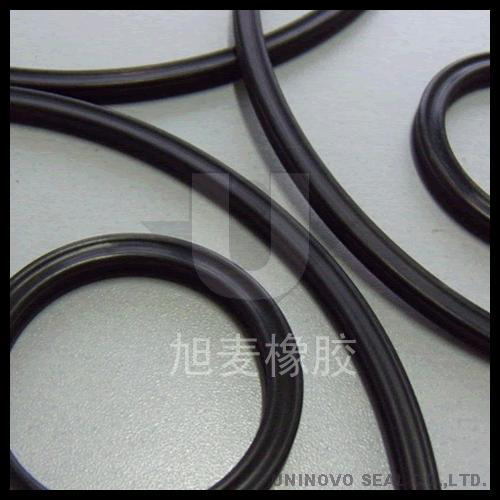

AS568 standard Quad-Rings
Description: Among the myriad of different Quad-Rings dimension standards available,AS568 is the most commonly used standard in the U.S. for aerospace,automotive and general industrial applications.The US Society of Automotive Engineers (SAE) Aerospace standard AS568 is one that specifies the inside diameters,cross-sections,tolerances,and size identification codes (dash numbers) for Quad-Rings used in sealing applications and for straight thread tube fitting boss gaskets.
Advantages of AS568 standard quad-Rings : 1.The dimensions and tolerances of X-Rings are conform to AS-568. 2.Standard size and has strong universality and applicability. 3.Have a range of AS568 size mold. 4.Low friction,less wear and very good sealing efficiency due to it special profile.
Material selection of AS568 standard quad-Rings : Material:VITON/NBR/HNBR/EPDM/VMQ/CR/FFKM/AFLAS/FVMQ. Standard colors:black,other colors can also be customized. Sizes:full range of AS568 standard. |
