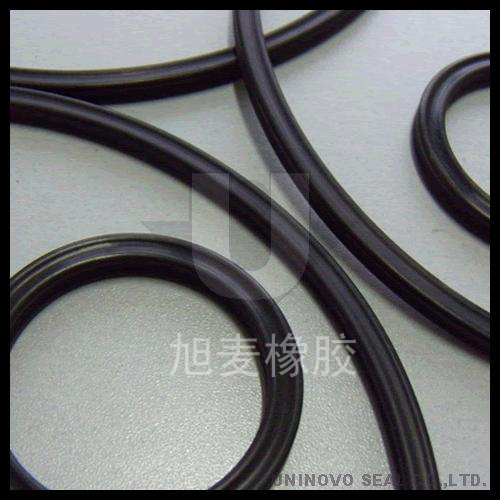

EPDM X-Rings

Item:XR-EPDM
PDF:no !pfd

Specification:

Description:EPDM X-Rings provide superior resistance to water and steam, alcohols,glycol engine coolants and similar polar fluids.In comparison to the EPDM O-rings,EPDM X rings have less wear,longer service life,and better seals function.

EPDM X-Rings

Description:EPDM X-Rings,also known as EPDM Quad-Rings.The four-lobed design not only provides lower fiction than EPDM O-ring,but also,due to its square cross section,it resists spiral twist.X-Rings are available in a wide range of elastomer materials for both standard and special applications.EPDM X-Rings are supplied to the American Standard AS568A and are completely interchangeable with O-rings in these sizes.They can be used in a variety of static and dynamic sealing applications including rotary,reciprocating or oscillating motion.Food grade compliant EPDM X-Rings often used in drinking water systems (NSF, KTW, W270,WRAS).

Advantages of EPDM X-Rings
1.Exhibit exceptional resistance to water,steam,alcohols,glycol engine coolants,similar polar fluids.
2.Give a positive seal with less friction,has a high stability for dynamic applications.
3.Resists spiral twisting and extrusion,less wear and longer service life,better seals function.

EPDM X-Rings Material Characteristics:
Standard hardness:70 Shore A
Hardness range:40-90 Shore A
Temperature Range:-55C to 125C
Standard colors: black,other colors can also be customized
Sizes: AS568 standard sizes and customized sizes are available
